thermosyphon pot system
TSP100

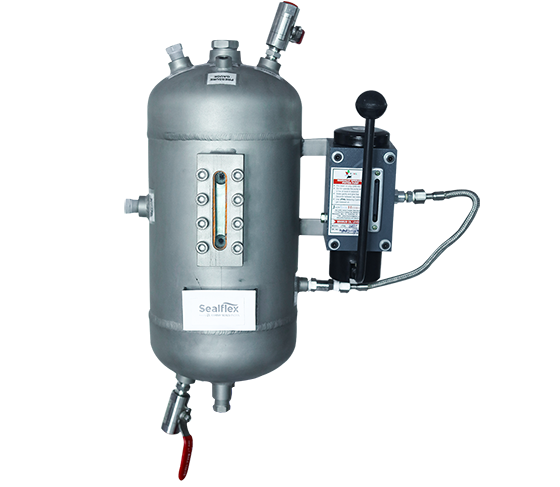

Thermosyphon Pot System

Objective

To provide a flow of cooling media to the mechanical seal at required pressure.

Operating Limits

Shaft Diameter 20mm to 100mm
Pressure 10 bar (max.)
Temperature Ambient to 180°C
Speed 600 rpm (max.)

Major Benefits

  • Prevents dry run.
  • Keeps seal cooled & lubricated.
  • Extends the life of the seal.

Operation

  • The exchange of heat takes place by thermosyphon principle or forced circulation.
  • Media in the vessel is forced into the seal through bottom line.
  • Hot fluid leaves the seal through top line back into the vessel.
  • Hot media is then cooled by contact with the walls of the tank and cooling coils.

Material of Construction

Tank: SS316, SS304, Carbon steel.
Coil Cool: SS316, SS304, Copper

Basic components

  • Tank: Slight glass
  • Cooling coils: Manometer
  • Pressure switch: Level switch

Note: Operating parameters vary depending on the Application and tank volume.

Application

Refining
Industry

Oil & Gas
Industry

Chemical
Industry

Petrochemical
Industry

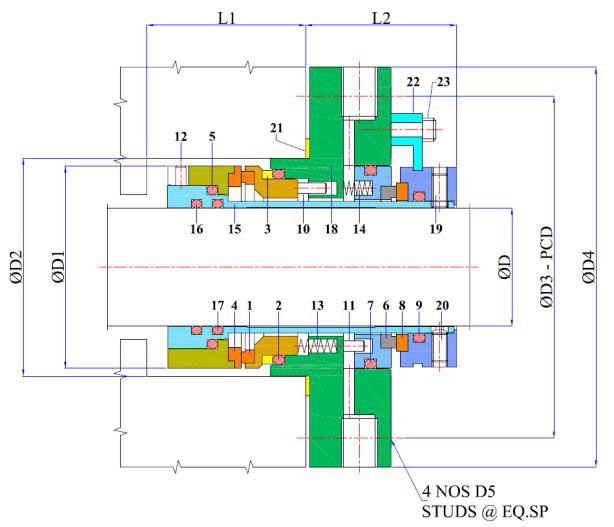

thermosyphon pot system design
# Description
1 Mating Ring
2,4,6,8 O-ring
3 Seal ring
5 Mating ring
7 Seal ring
9 Retainer
10 Grub screw
11 Spring
12 Thrust ring
13 Snap ring
