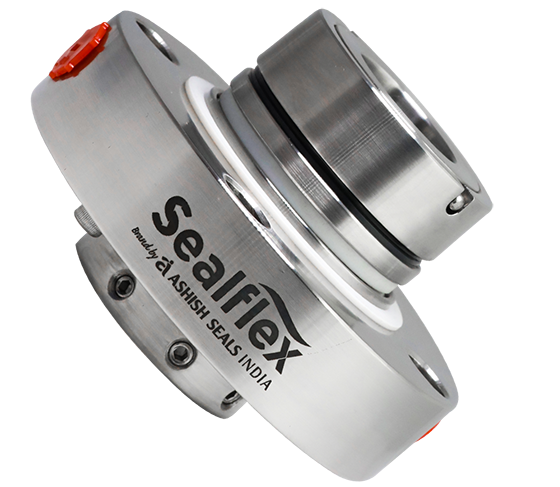

single cartridge mechanical seal sfcs52
CS52

Single Cartridge

Mechanical Seal

Characteristics

Standard heavy duty cartridge design, Single mechanical seal, Balanced, Inside mounted, Independent of direction of rotation.

Operating Limits

Shaft Diameter 25mm to 100mm
Pressure 25 bar (max.)
Temperature -20°C to 200°C
Speed 2900 rpm (max.)

Seal Faces

Carbon, Silicon carbide, Tungsten carbide

Secondary Seal

FKM, FFKM, EPDM, Silicon, NBR, Aflas, TTV, TCV, GFT.

Metal Components

SS316, SS316L, SS304, Hastelloy-C, Monel, Alloy 20.

Application

Slurry

Pulp & Paper

Syrup
