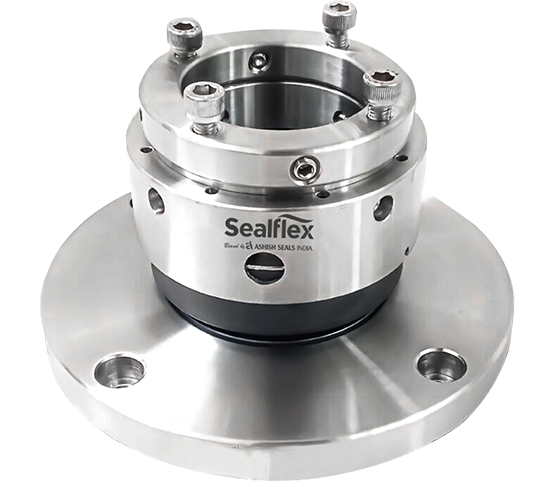

dry running mechanical seal
DS71

Dry Running

Mechanical Seal

Characteristics

Standard design, Single mechanical seal, reversed balance, outside mounted, Independent of direction of rotation, Dry running.

Operating Limits

Shaft Diameter 20mm to 150mm
Pressure Vacuum to 10 bar (max.)
Temperature -20°C to 220°C
Speed 1000 rpm (max.)

Seal Faces

Carbon, Silicon carbide, Tungsten carbide.

Secondary Seal

FKM, FFKM, EPDM, Silicon, NBR, Aflas, TTV, TCV.

Metal Components

SS316, SS316L, SS304, Hastelloy-C, Monel, Alloy 20.

Application

Food
Industry

Pharmaceutical
Industry
