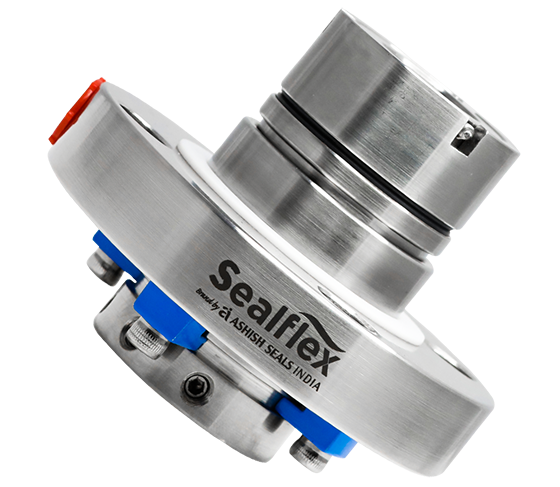

double cartridge mechanical seal
CS53

Double Cartridge

Mechanical Seal

Characteristics

Standard compact cartridge design, Double mechanical seal, Balanced, Inside mounted, Independent of direction of rotation.

Operating Limits

Shaft Diameter 25mm to 80mm
Pressure 20 bar (max.)
Temperature -20°C to 220°C
Speed 2900 rpm (max.)

Seal Faces

Carbon, Silicon carbide, Tungsten carbide.

Secondary Seal

FKM, FFKM, EPDM, Silicon, NBR, Aflas, TTV, TCV.

Metal Components

SS316, SS316L, SS304, Hastelloy-C, Monel, Alloy 20.

Application

Slurry

Pulp & Paper

Syrup
